Gottlieb Pinball

System 3

We are now stocking more Sys 3 Electronic  Parts

Amazon Hunt III
Barb Wire
Bell Ringer
Big Hurt
Cactus Jack's
Car Hop
Caribbean Cruise
Class of 1812
Cue Ball Wizard
 Deadly Weapon		 Freddy: a Nightmare on Elm Street
Gladiators
Hoops
Lights...Camera...Action!
Mario Andretti
Nudge-It
Operation: Thunder
Rescue 911
Shaq Attaq
Silver Slugger
Stargate		 Street Fighter II
Strikes 'N Spares
Super Mario Bros.
Super Mario Bros. Mushroom World
Surf 'n Safari
Tee'd Off
Title Fight
Vegas
Waterworld
Wipe Out
World Challenge Soccer

Some New Items

33,000uf 35V Cap with Solder Leads

10,000uf @ 25V Cap. with Solder Leads

IRL530 $1.25 each or 10 for $9.00
Cables and Connectors

If you don't see yours listed, Email us. We can manufacture all kinds
MPU, Driver & Sound Board
 Connectors & Heat Shrink Replacement Kits


Custom cut for your needs, no crimping required.
Board Connector # Description Part Number Cost
MPU A1J2 24 Pin Gold SS COGS8-A1J2 9.25
MPU A1J3 17 Pin Gold SS COGS8-A1J3 6.75
MPU A1J5 10 Pin Gold SS COGS8-A1J5 3.50
MPU A1J6 19 Pin Gold SS COGS8-A1J6 7.50
Driver A3J2 10 Pin Gold, SS COGS8-A3J2 3.50
Driver A3J3 25 Pin Nickel, DS COGS8-A3J3 12.50
Driver A3J4 15 Pin Gold, SS COGS8-A3J4 5.00
Driver A3J5 8 Pin Gold, SS COGS8-A3J5 2.75
Driver A3J6 4 Pin Gold, SS COGS8-A3J6 1.50
Display X - A4J1 19 Pin Gold SS COGS8-A4J1 7.50
Sound Power A6J1 12 Pin Gold, SS COGS8-A6J1 4.00
Sound Power A6J1 19 Pin Gold, SS COGS8-A6J1-A 7.50

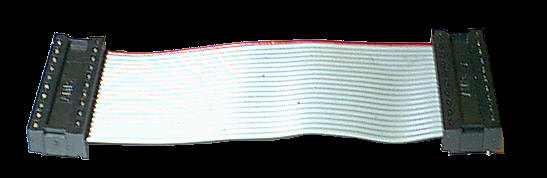

3 1/2 & 7", 20 pin DIP Cable A6S4 to A20J4
 Sound to Aux Sound Boards

(Gott# 29839)    CAGRC-A6S4-3    $6.50
(Gott# 25699)    CAGRC-A6S4-7    $7.50

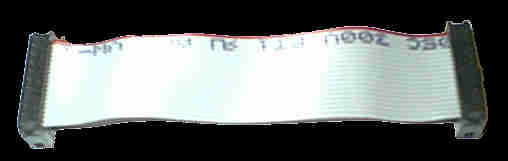

4 1/2", 20 pin IDC Cable
 A1P2 to A3P2 also A1P3 to A8P3
MPU to Driver and MPU to Display Controller
(Gott# 26799, 28822)     CAGRC-A1P23
$5.00

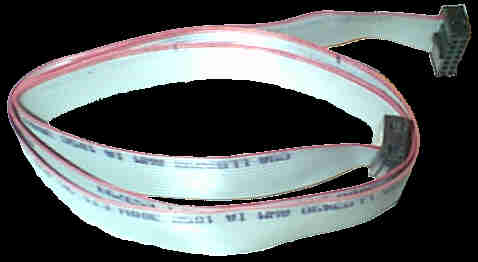

30", 14 Pin IDC Cable A8P4 to A4P2
Display Controller to Display
(Gott# 28814)    CAGRC-A8P4
$7.50

NEW, System 3 +5Volt VReg Rebuild Kit.
New Voltage Regulator, Isolator Pad,
 Heat Sink Compound and Voltage Adjusting Pot
GOTS3KT-6558
$4.50
Gottlieb Screw Down Standoff

NYSOG-2000

10Pk 25Pk
3.50 7.50
 		 Pins and Headers For all connectors, Pins, Headers and the like



CLICK HERE


Gottlieb System 3 Display U8G

GAL16V8

#GOTDSP-U8G       $15.00

 Molex Crimp Tool

 Crimps most all common open barrel pins

Will crimp all pins shown on this page.

Order # CT56-1000

$65.00
Pictures are for reference only. Color and style may vary.
