Bally Pinball

WPC Driver Board Repair & Upgrade

Fixes the most common Electrical Problems
associated with this board.

KIT INCLUDES
J120, J121, Field Lamps Power out
J115,  Field Lamps Power In
J101, J102  M / F headers
Pins to replace the ones listed above
BR2, C5, C4 +12V and Vcc Power
BR1, C2,  +18V to Lamps and +12V Digital
BR3, C8,  For Solenoids and Flippers
Pack of Silicon Heat sink Grease.
Insert Fan for Vcc Vreg. with wire shield
Install Instructions

WPC-1010        $45.00

 WPC HV  & DMD
Control Board Repair & Upgrad Kit

These parts replace the most common parts that destroy your expensive DMC Board.
 Prevent Burning.

Comes with Easy install Installation

KIT INCLUDES
2 - 5W Resistors,
1 - 10W Resistor
 4 - Zener Diodes,
1, Heat Resistant Wire

WDUK-1001       $5.95

AS-2518-18 Power Supply Repair Kit for Bally & Stern Pinball's

OVER 50 PCS

Includes .156 Square Male Pin Header ( 20, 10, 8 Pin )
.156 Female Headers ( 20, 10, 8 Pin )
Replacement Female Pins ( 45 Crimp Pins )
(A Few Extra Pins Just In Case ! )
Locater Pins ( 3 )



Replacing  just one side does not solve the problem.

Cold solder jointson the male pins

can reburn the Female connector fast.



XFMRKT-001    $24.95
For all connectors, Pins, Headers and the like

CLICK HERE
























Bally Pinball

WPC Display Control Board (DMD) Repair & Upgrade



These parts replace the most common parts that destroy your expensive DMC Board.
 Prevent Burning.

Comes with Easy install Installation

KIT INCLUDES
2 - 5W Resistors,
1 - 10W Resistor
 4 - Zener Diodes,
1, Heat Resistant Wire

WDUK-1001       $5.95

WPC Driver Board
Repair & Upgrade

Fixes the most common Electrical Problems associated with this board.

KIT INCLUDES

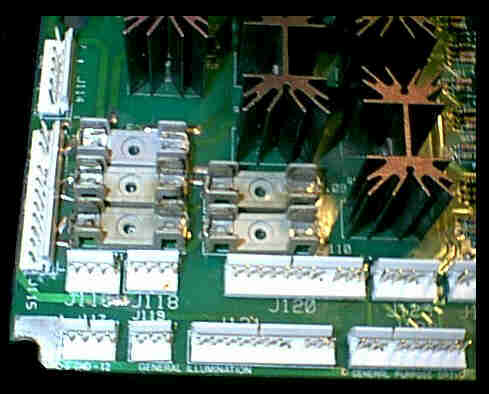

J120, J121, Field Lamps Power out
J115,  Field Lamps Power In
J101, J102  M / F headers
Pins to replace the ones listed above

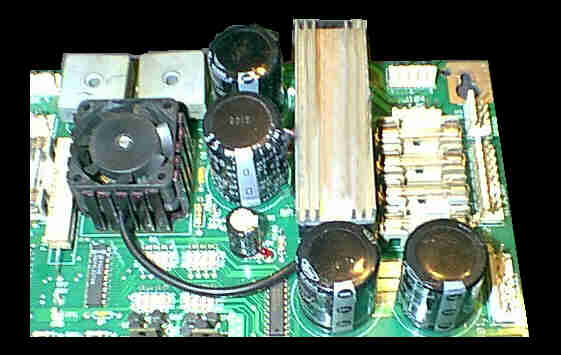

BR2, C5, C4 +12V and Vcc Power
BR1, C2,  +18V to Lamps and +12V Digital
BR3, C8,  For Solenoids and Flippers
Pack of Silicon Heat sink Grease.
Insert Fan for Vcc Vreg. with wire shield

WPC-1010        $45.00

 5 Volt Reg. Rebuild Kit Solenoid Driver Boards

XFMRKT-002       $24.95

  5 Volt Reg. Rebuild Kit for Bally Solenoid Driver Boards

BSVRKT-794    $17.95
AS-2518-48
 Power Supply w/30A Lamp




AS-2518-18 Power Supply Repair Kit for Bally & Stern Pinball's

OVER 50 PCS

Includes .156 Square Male Pin Header ( 20, 10, 8 Pin )
.156 Female Headers ( 20, 10, 8 Pin )
Replacement Female Pins ( 45 Crimp Pins )
(A Few Extra Pins Just In Case ! )
Locater Pins ( 3 )



Replacing  just one side does not solve the problem. Cold solder joints
 on the male pins can reburn the Female connector fast.

XFMRKT-001    $24.95





 Molex Crimp Tool





 Crimps most all common open barrel pins

Will crimp all pins shown on this page.

Order # CT56-1000

$65.00

For all connectors, Pins, Headers and the like

CLICK HERE



Williams / Bally Eddy Sensor
Part # A-18543-2

Used on games like Red and Ted and many other

VR102-145  $1.75

 Leon's Bally / Stern 17,35 - 100,200
 MPU Test Chip

For Testing Stern 100, 200
 Bally -17 and -35

w/Documentation
BALLYTST-001 $9.95

Silicon Heat Sink Compound



3ml in a Syringe

SHSC-3ML

$2.50

Silicon Oil 3ml

3 ml of the finest Silicon oil.

CHEM-25-335

$3.95

Nylon Stand Off

1/2 inch

NYSOW-1000
$3.00 for 10

Pinball Lithium Battery
 Kit Special

Full AA size Hermitically Sealed Battery w/ leads
 (10 Year Battery!)
   2-Diode to replace charging  resistor


 BAT2341-N

$9.50 Each

 Bally Sound Chips

Used on the AS-2518-X Sound Boards U3


729-18
729-51

$9.95

 MPU Reset Switch

DPST N.O.N..C.

Part # MSW-5367

$3.50 Each
A-17064 Eddy Sensor

Used on many WPC games

CABES-1000
$8.00

 For WPC Driver Boards

15,000uf @ 25V

Snap Cap.

$7.50

028-153-250-1



3 X AA
 Battery Holder





  Same Battery Holder
 with 2 Pin Disconnect Plug and 12" wires, Larger Gauge on second 1/2


3AABH00     $4.00/ea.

















































Pins and Headers


Bally Cables
 Email for low prices on custom made cables or Pinball cables not shown

WPC, WPC95
<MPU to Driver PCB
<J211, J113




CABRC-1001

$5.00

WPC
<MPU, Fliptronic, SND, DMC
<J202, J903, J505, J601




CABRC-1002 `

$14.00

WPC
<MPU, SND, DMC
<J202, J505, J601




CABRC-1003

$12.00

WPC
<MPU to DMC
<J201, J602

14", 26 Pin, 2 Connector, U

CABRC-1004   $5.00

WPC
<DMC to Display wo/Ferrel


CABRC-1005 (32") $7.50

CABRC-1005C (60") $10.50

WPC, WPC95
<DMC to Display w/Ferrel


CABRC-1006 (32")

$12.00

WPC
<MPU to Aux Driver PCB (R)
J204, J1
CABRC-1007-(Length)

5795-10938-(14,15,27,30,32)

26 Pin, 2 Connector 14 Inch (Price A)
26 Pin, 2 Connector 15 Inch (Price A)

26 Pin, 2 Connector 27 Inch (Price B)
26 Pin, 2 Connector 30 Inch (Price B)
26 Pin, 2 Connector 32 Inch (Price B)

A=$6.50    B=$8.50

WPC
<MPU to 8-Driver PCB (L)
J204, J1


CABRC-1008

$5.00

WPC 95
<MPU to A/V PCB
J201, J601


15", 34 Pin, 2 Connector, U

CABRC-1101

$6.50

WPC 95
<MPU to A/V PCB
J202, J602

19", 26 Pin, 2 Connector, U

CABRC-1102

$6.50
