WPC Display Control Board (DMD) Critical Upgrade

These parts replace the most common parts that destroy your expensive DMC Board.
The old parts cause burning of your PC Board, They can actually burn a hole in it!

Board  Replacement can run over a hundred dollars !

Easy to replace and comes with Easy Installation Instructions.
Just a few dollars will save you time, aggravation and money.
Install this kit BEFORE your board is damaged.
Just take a second and look at the back of yours,
How brown is yours?

Every WPC game should have this installed!

Kit Includes

2 - 5W Resistors, 1 - 10W Resistor
4 - Zener Diodes, 14 - Heat Resistant Wire Shields



WDUK-1001
Kit is Only $4.95

Shop installed for $15.00 plus shipping
Does not include any repair to circuits or PC board,

Boards can be repaired for an additional charge

********************************************************

BOUNES

Buy 5, WDUK-1001 for only $4.00 each
SAVE $4.75

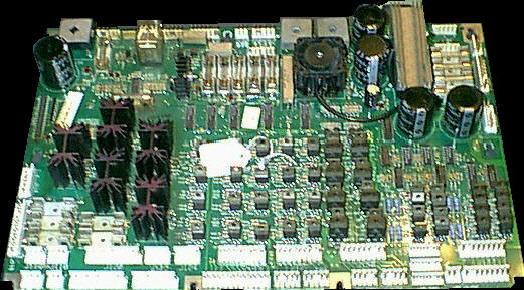

WPC Driver Board
Critical Upgrade


Bring the power back to your game!

Fixes the most common Electrical Problems associated with this board.

Game resetting, Week Flippers,
Connecters (Both Sides),

Board Burn and Over Heating.

Now we have added a fix for an emerging problem.
The "Crazy Opto Switches"
This shows up after the game being on for a short while.
The opto switches start going on and off by themselves

or loss of the opto switches all together. We have the fix.
Also, MORE POWER!


Rectifiers are 50Amp!   Old ones were only 35Amp. Stronger, Longer Life!
Power Rectifier and Capacitor for game resetting (Vcc).

Flipper Rectifier and Capacitor, For Better Power.
We include a Cooling fan for the Main Power Regulator (Vcc).

Extends part life by keeping your board cooler and parts from overheating.
includes New Heat Sink Compound and Wire Shield

Includes Replacement connectors (Male / Female) to replace the burnt ones.

Field Lamps, Power In/ Out

Every WPC game should have this installed.

KIT INCLUDES

(Shown in gray on the board layout)


J120, J121, = Field Lamps Power Out
J115, = Field Lamps Power In

J101, J102 = Power In for Main Vcc, Switch Lamp Power

Male Pins and Female Headers With Pins to replace the ones listed above
BR2, C5, C4 = +12V and Vcc Power (Game Resetting)
BR1, C2, = +18V to Lamps and +12V Digital
BR3, C8, = Solenoids and Flippers

Pack of Silicon Heat sink Grease.
Insert Fan for Vcc Vreg. with wire shield

WPC-1010        Only $45.00

NEW A-17064 Eddy Sensor

Now with Silicon Wires

Used on many WPC games

Only $6.00

CABES-1000

Williams / Bally Eddy Sensor

 Part # A-18543-2

Used on games like Red and Ted
and many others

VR102-145        $1.75

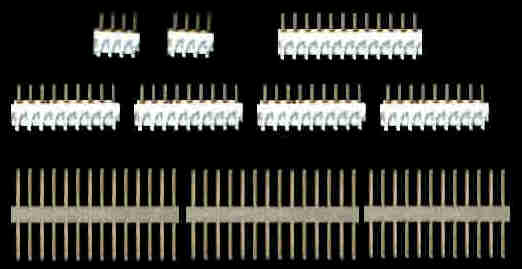

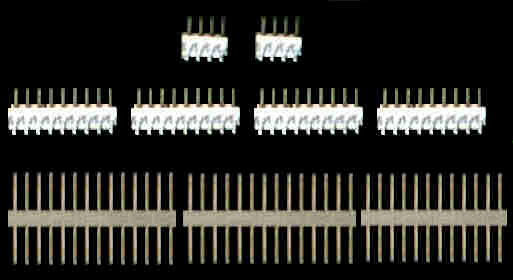

Williams MPU System 3, 4, 6, 6A

Full Connector Upgrade Kit

ONLY $6.50

WMPU-1000

Williams MPU System 7, 7A

Full Connector Upgrade Kit

ONLY $7.00

WMPU-1001

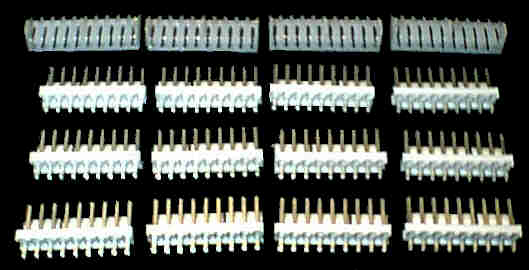

Williams I / O Driver

Sys. 3, 4, 6, 6A, 7, 7A

Full Connector Upgrade Kit









ONLY $ 17.50

WIOD-2000

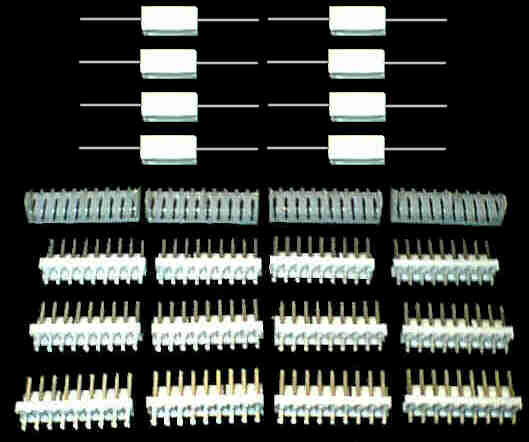

Williams I / O Driver

Sys. 3, 4, 6, 6A, 7, 7A

Full Connector Upgrade Kit with Lamp Resistor Upgrade Kit and Spacer Shim.

Instructions Included

ONLY $ 19.95

WIOD-2001

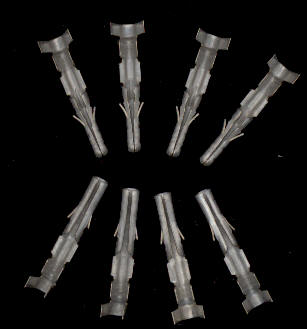

Field Lamp Power Connector replacement Kit
(System 11 Power Supply)

Replaces the old burnt pins for better and

brighter field lamps, M/F Header M/F 18g Wire Pins.

$3.50

FLCR - 1227

WPC-95

High Voltage Power Supply Power Resistor

Only $0.35 Each

Part Number RES120@5W-022

15 Pin Female

Use Pins
5A9078 / 5A9079

Williams # 5A-9093

COWA-9093

$2.00

15 Pin Male

Use Pins
5A9078 / 5A9079

Williams #  5A-9094

COWA-9094

$2.00

12 Pin Female

Use Pins
5A9080 / 5A9081

Williams #  5A-9109

COWA-9109

$1.75

6 Pin Female

Use Pins
5A9080 / 5A9081

Williams #  5A-9108

COWA-9108

$1.50

9 Pin Male

Use Pins
5A9078 / 5A9079

Williams # 5A9138

$1.50

9 Pin Female

Use Pins
5A9078 / 5A9079

Williams # 5A9139

$1.50

12 Pin Female

Use Pins
5A9078 / 5A9079

Williams # 5A9132

$1.75

12Pin Male

Use Pins
5A9078 / 5A9079

Williams # 5A9133

$1.75

For all connectors, Pins, Headers and the like

CLICK HERE

System 3 to 7A

Display Header
Replacement Pins

Click on Link to Left

#77-2534

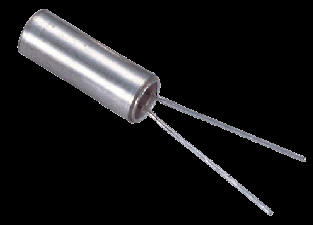

WPC MPU Crystals

32.768Khz - $0.75 (3276)
8.0 Mhz - $1.25 (4008)

CRY-3276-09
CRY-4008-06

WPC MPU PLCC Socket

Socket for ASIC Chip
$1.50 Each

ICSO-4533-04

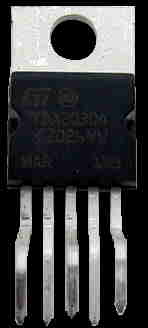

  New TDA2030
WPC Audio Amp

TDA2030 $1.25



3 X AA
Battery Holder


2 Pin Disconnect Plug

and 12" wires,

3AABH00     $4.00/ea.

Williams # 5A-9074

Power Supply 3J2
Connector on PCB
Pins Included

$0.85

COWA-9074

50A 1000V FWBR

Stud Mount

$4.95

FWBR501S1

Replaces 25to 50 Amp.
Same case footprint better power

50A 1000V FWBR

Wire Mount

$4.95

FWBR501W1

For WPC Driver Boards

15,000uf @ 25V

Snap Cap.

$7.50

028-153-250-1

For WPC Driver Boards

Leon's
System 1 - 6, 7
MPU Test Chip
With Documentation

System 3, 4, 6 - V3  $9.95
WILLTST-001

System 7 -V3   $14.95
WILLTST-002 (Sys7)

WPC MPU Connectors


J212, (8 Pin)
J206, J208, J207, J209 (9 Pin)
J209, (11 Pin)

8 Pin $0.50
9 Pin $0.60
11 Pin $0.75

Part Number
CON-3722-(8, 9 or 11)

Hardened 1/8 Hex Bit
Removes most all
Flipper Set Screws

Sold Out

SDB-100-125


#259 Lamp



.35 Each
Box of 10 $2.00

DELIS-259 (Each)
DELIS-259-10 (Box of 10)

#44 Lamp



.35 Each
Box of 10 $2.00

DELIS-44 (Each)
DELIS-44-10 (Box of 10)



SILICON OIL W / DISPENSER

This stuff is so slick it has a warning on the bottle.
So it will work great on your games and vending equipment.
3 ml of the finest Silicon oil in an easy to dispense syringe

CHEM-25-335

Only $3.95 a tube

Get 10 for only $2.50 each, save over 35%



Sound Board Switch

SPDT

Used on Many
System 3 to 7a Sound Boards

$1.25 Each
$10.00 for 10

MSW-5353

Nylon Stand Off

1/2 inch

0.35 Each
$3.00 for 10

NYSOW-1000 (White)
NYSOB-1000 (Lt. Brown)



Williams Cables
Email for low prices on custom made cables or Pinball cables not shown

WPC, WPC95
<MPU to Driver PCB
<J211, J113
CABRC-1001





$5.00

WPC
<MPU, Fliptronic, SND, DMC
<J202, J903, J505, J601
 CABRC-1002

`

$14.00

WPC
<MPU, SND, DMC
<J202, J505, J601
 CABRC-1003

$12.00

WPC
<MPU to DMC
<J201, J602
CABRC-1004

10", 26 Pin, 2 Connector, U

$5.00

WPC
<DMC to Display wo/Ferrel
CABRC-1005

$7.50

CABRC-1005 (32") $7.50

CABRC-1005C (60") $10.50

WPC, WPC95
<DMC to Display w/Ferrel
CABRC-1006

$12.00

WPC
<MPU to Aux Driver PCB (R)
J204, J1

CABRC-1007-(Length)

5795-10938-(14,15,27,30,32)

26 Pin, 2 Connector 14 Inch (Price A)
26 Pin, 2 Connector 15 Inch (Price A)

26 Pin, 2 Connector 27 Inch (Price B)
26 Pin, 2 Connector 30 Inch (Price B)
26 Pin, 2 Connector 32 Inch (Price B)

A=$6.50    B=$7.50

WPC
<MPU to 8-Driver PCB (L)
J204, J1

CABRC-1008

$5.00

MPU to 8-Driver, 32",  U

WPC 95
<MPU to A/V PCB
J201, J601

CABRC-1101

$6.50

15", 34 Pin, 2 Connector, U

WPC 95
<MPU to A/V PCB
J202, J602

CABRC-1102

19", 26 Pin, 2 Connector, U

$6.50

System 7
Williams Part Number 5A-9354
Voice to Sound Board Cable
CABRC-7054

$17.50

System 11
MPU to B/G Sound
MPU A1J21, J4 B/S PCB

CABRC-2002

20 Pin 6" Connector, U

$5.00

System 11
MPU to B/G Analog Snd Interface
MPU A1J6, J1 B/S PCB

4 Pin 9" - CABWR-2001

$5.00

System 11
Jackpot / Meter Display Cable
For Taxi, 36" 20 Pin Z
5791-09438-00

CABRC-2003

20pin 36",2 connector,  Z

$10.00

System 11
MPU to Display
J22, J1

CABRC-2001-X







11-       ?'     CABRC-2001-A
11B-     ?'     CABRC-2001-B
11C,  26"     CABRC-2001-C

$10.00

J204 to display
