MPU Board Cables
NEW ITEM

Gold IC Pins

High Quality MPU to Reset Board
CAGS8-TC1
$9.95 Each

Molex Crimp Tool

 Crimps most all common open barrel pins

Will crimp all pins shown on this page.

Sold Out

          Order # CT56-1000

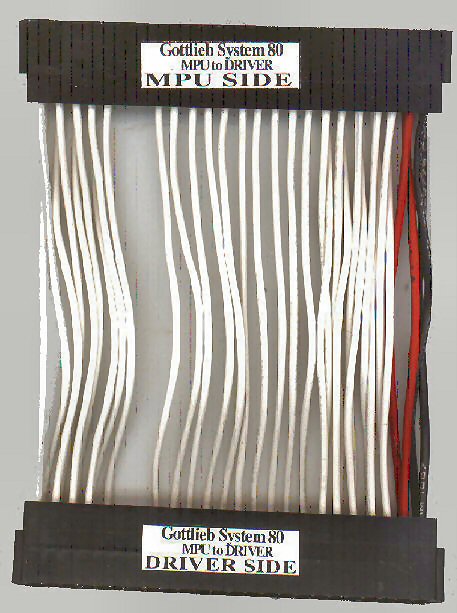

MPU to Driver Board Cables


New Sys. 80 MPU to Driver
A1J4 to A3J1 5" Cable Repair Kit

Now a kit for those who want to do it themselves
This does NOT include the headers


29  white, 2 black and 2 red wires with
already installed pins on the ends.
Includes free 1 economy pin removal tool

Has an extra set of power wires both +5V  and Ground as recommended by the Major Pinball repair Sites

Signal Wires are 20 Gauge, Power Wires are 18 Gauge

Order # CAGS5-A1J4-K
ONLY $26.00

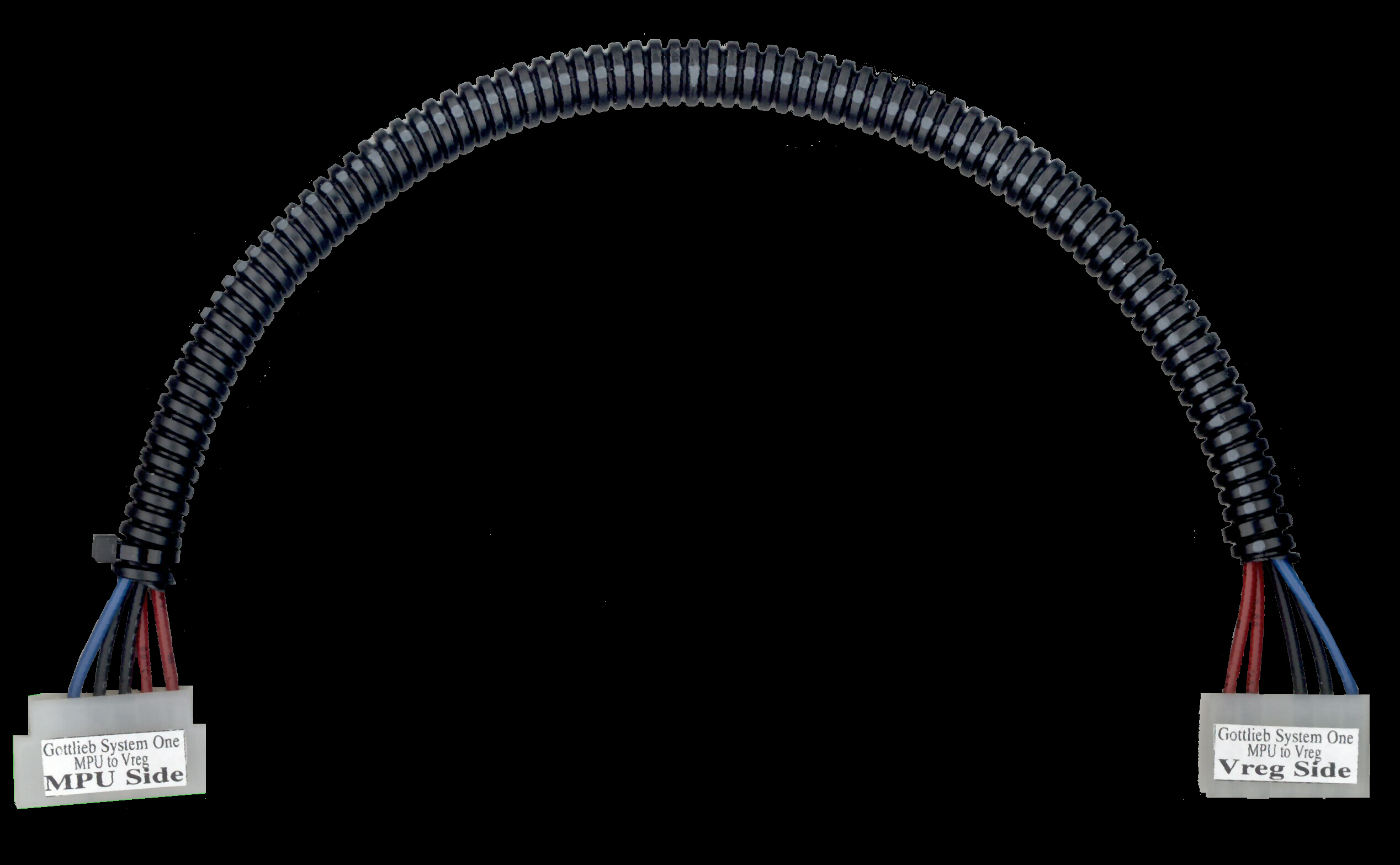

MPU to Vreg Power Cable

A1J1, MPU to Vreg Cable

System 80 MPU to VReg,
    Not a Referb.  All new parts.
Uses the original System 80 connectors

Gold pins* are on MPU side only

Power Wires are 18 Gauge

* Gold on MPU side only


Part Number Gold Ground Cost
CAGS8-A1J1-T No No $7.50
CAGS8-A1J1-GNT No Yes $8.50
CAGS8-A1J1-G Yes* No $12.00
CAGS8-A1J1-GNG Yes* Yes $13.00


MPU, Driver, Sound, Display Board

Connectors & Heat Shrink Replacement Kits

Gold Flashed Pins and Heat shrink
Example Picture only,
Color, Style and Size may vary.

Custom cut for your needs, no crimping.
Connector Description Part Number Cost
A1J2 24 Pin Gold SS COGS8-A1J2 $9.25
A1J3 17 Pin Gold SS COGS8-A1J3 $6.75
A1J5 10 Pin Gold SS COGS8-A1J5 $3.50
A1J6 19 Pin Gold SS COGS8-A1J6 $7.50
A3J2 10 Pin Gold, SS COGS8-A3J2 $3.50
A3J3 25 Pin Nickel, DS COGS8-A3J3 $11.50
A3J4 15 Pin Gold, SS COGS8-A3J4 $5.00
A3J5 8 Pin Gold, SS COGS8-A3J5 $2.75
A3J6 4 Pin Gold, SS COGS8-A3J6 $1.50
A4J1 19 Pin Gold SS COGS8-A4J1 $7.50
A5J1 19 Pin Gold SS COGS8-A5J1 $7.50
A6J1 12 Pin Gold, SS COGS8-A6J1 $4.00
A6J1 19 Pin Gold, SS COGS8-A6J1-A $7.50
A14J1 24 Pin Gold, SS COGS8-A14J1 $9.25

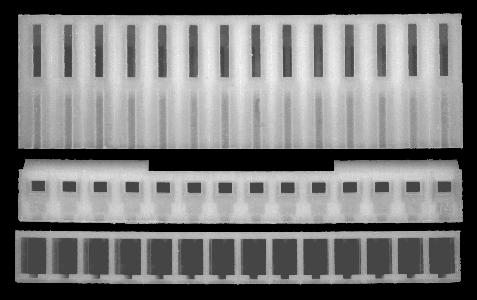

Power (Vreg) Board, Pop Board
Cables and Connectors
Includes Header, Pins and locater Pin if applicable
    Connector Description Part Number Cost
A2J1 9 Pin Single Side COGS8-A2J1 $2.20
A2J2 6 Pin Single Side COGS8-A2J2 See Cable
CAGS8-A1J1
A2J3 7 Pin Single Side with Locater pin COGS8-A2J3 $2.00
A8P1 6 Pin Header
With 5 Pins and  Locater Pin
COGS8-A8P1 $1.75
A11P1 4 Pin Header
With 3 Pins and
Locater Pin
COGS8-A11P1 $1.15
A11P2 10 Pin Header
With  Pins
COGS8-A11P2 $2.75

Sound Board Cable
Cable Description Part Number Cost
A7J1 Original 7 Pin to 9 Pin Cable CAGS8-A7J1-T $7.50
A7J1 Original 7 Pin to 9 Pin Cable
only  PCB connector side is Gold
CAGS8-A7J1-G $10.95

MPU - ELECTRONIC PARTS

Lithium Battery Replacement Kit

Includes...

  1-Full AA size Hermitically       Sealed Battery w/ leads
     10 Year Battery !
  2-Diode to replace charging  resistor
  3-Installation Instructions.

 $9.50 Each

Part #   BAT2341-N-G8

Nylon Stand Off

1/2 inch





0.35 Each
$3.00 for 10

NYSOW-1000 (White)
NYSOB-1000 (Lt. Brown)

3 X AA
Battery Holder


NEW
 Same Battery Holder
with 2 Pin Disconnect Plug and 12" wires, Larger Gauge on second 1/2

3AABH00     $4.00/ea.

Power Supply Rebuild Kit



Coming Soon

All IC's



8 bit MPU Dip Switch
$1.25



3579.545KC MPU Crystal $1.50



50A 1000V FWBR

Stud Mount

$4.95

FWBR501S1

Replaces 25to 50 Amp.
Same case footprint better power



All Capacitors

Click Here




All Transistors

Click Here



All Diode

Click Here



Power Supply Main Cap.


6800uf @ 25V 85 Deg.  With Solder Terms

1" X 1",    028-682-250-1L    $4.50

Power Supply Main Cap.

6800uf @ 25V 105 Deg. With Solder Terms

1" X 3",   028-682-250-2L  $7.50


Other Parts
System 80, 80 A/B Pins
Also used on our System One Cables


Pins for header (MPU to Driver)

SOLD OUT

Part Number #77-2553

System One Pins
For Original Cable

Pins for header (MPU to Driver)

.20 each
.175 lots of ten
.125 lots of 100
.080 lots of 1000

Part Number # 77-2574

Economy pin remover


Easily Removes #77-2553 pins from header

Part Number # 99-2553       Only $2.50

SILICON OIL W / DISPENSER

This stuff is so slick it has a warning on the bottle.
So it will work great on your games and vending equipment.
3 ml of the finest Silicon oil in an easy to dispense syringe

CHEM-25-335

Only $3.95 a tube

Get 10 for only $2.50 each, save over 35%

Pictures are for reference only. Color and style may vary.
All COG and CAG parts are made to order and may delay the shiping time depending on manufacturing delays.
